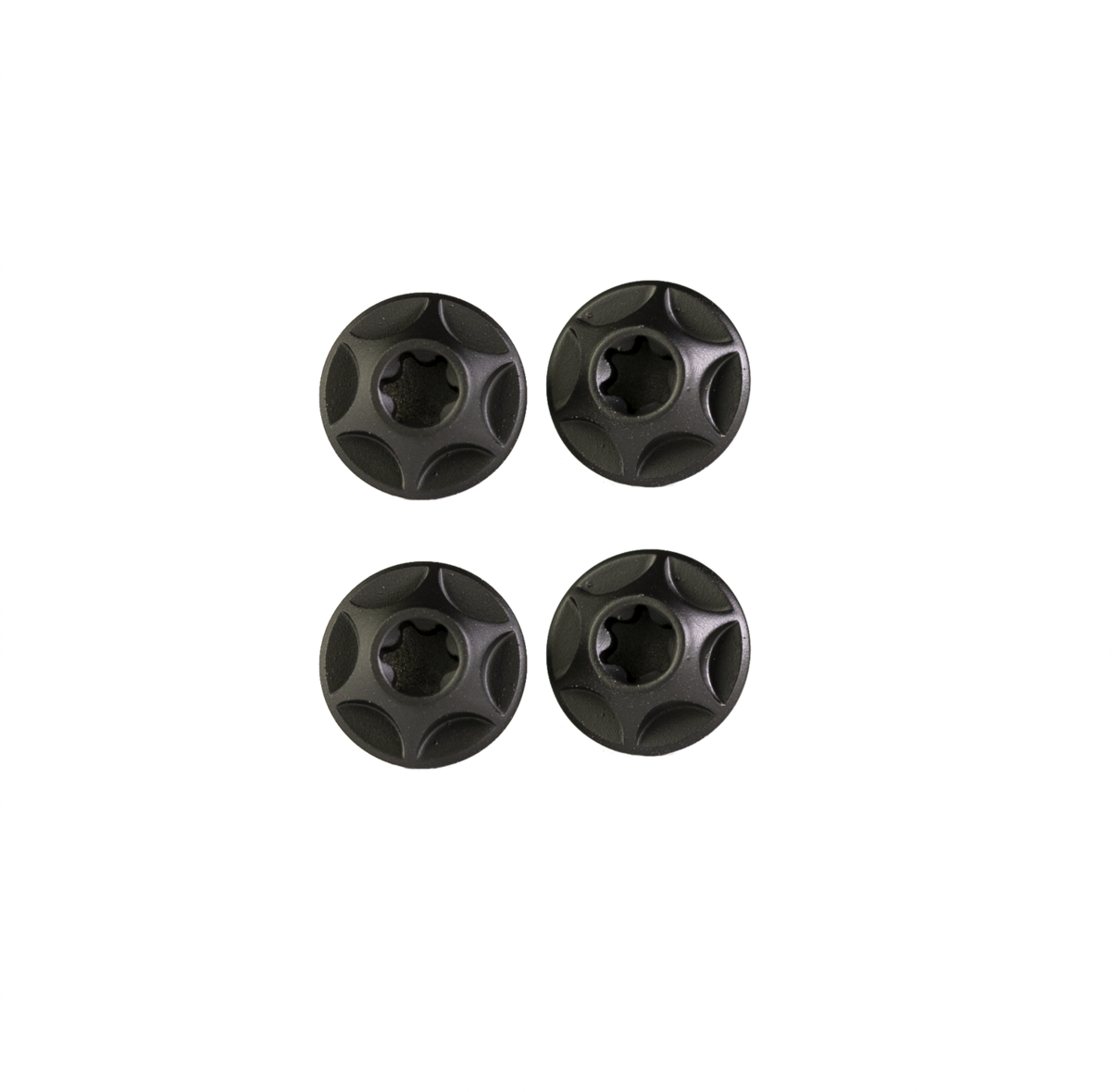

Pack of 4 low-profile head saves weight while providing appropriate clearance for the bottle. The flange head better distributes load across nearly 3x more surface area than a cap screw and more than 2x the surface area of a button head providing both increased rigidity and lower stress. Each screw is machined complete in one operation from 6Al/4V Titanium on a Swiss Lathe. Threads are roll formed for peak strength and material grain alignment in the finished screw. 6Al/4V Titanium
- Four M5x12mm
- 4mm Head Height
- 1.8g each
- Machined for a T25 Torx
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Cerakote Black | 810093160549 | AM-CC-970-ASY-0205 | 210000034505 |
Titanium | 810093160426 | AM-CC-970-ASY-0200 | 210000034881 |
